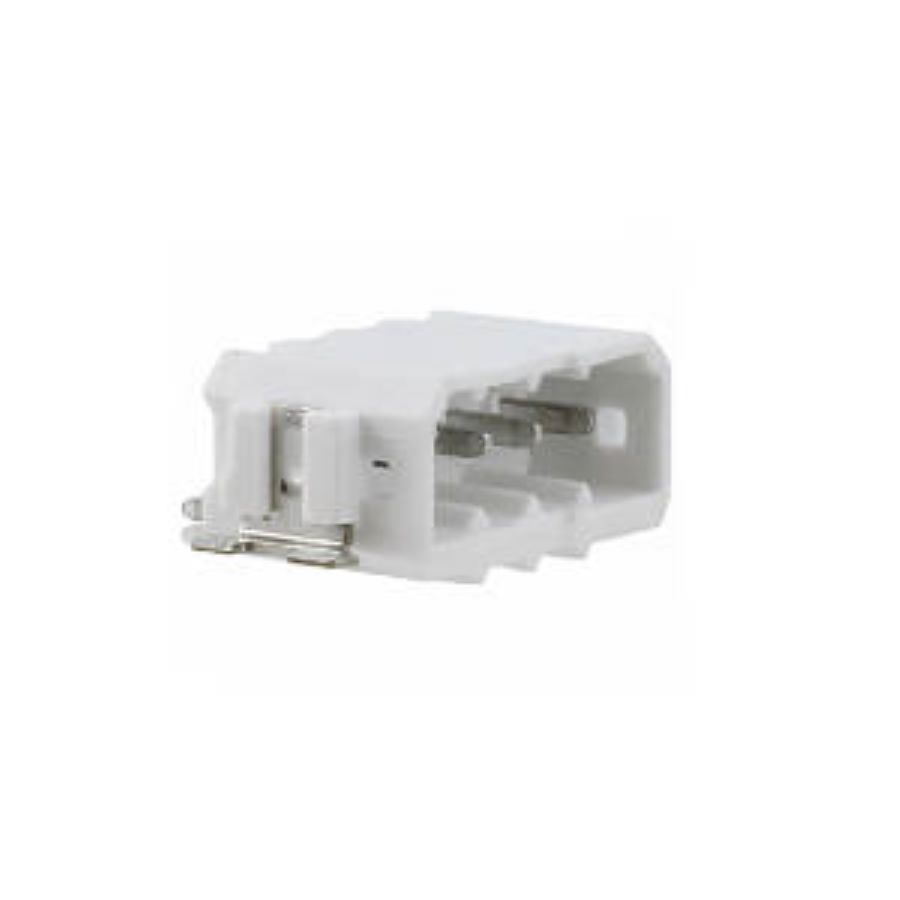

1814935
Manufacturer:
Phoenix Contact
Mfr.Part #:
1814935
Datasheet:
Description:
Terminal Blocks SMD/SMT 4 2.5 mm 6 A 160 V
| Parameter | Value |
|---|---|
| Length | 15.6 mm |
| Width | 15.6 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Material | Polyamide |
| Packaging | Reel |
| Voltage Rating | 160 V |
| Depth | 9.5 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current Rating | 6 A |
| Max Current Rating | 6 A |
| Approvals | UL |
| Orientation | Right Angle |
| Color | White |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Housing Color | White |
| Schedule B | 8536694040 |
| Connection Method | Plug |
Stock: 2178
Distributors
pcbx
pcbxUnit Price$0.70740
Ext.Price$0.70740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70740 | $0.70740 |
| 10 | $0.70133 | $7.01330 |
| 25 | $0.69532 | $17.38300 |
| 50 | $0.68936 | $34.46800 |
| 100 | $0.68345 | $68.34500 |
| 300 | $0.67759 | $203.27700 |
| 500 | $0.67178 | $335.89000 |
